AWS S3: Put Node

The AWS S3: Put Node allows a workflow to upload a file into an S3 bucket.

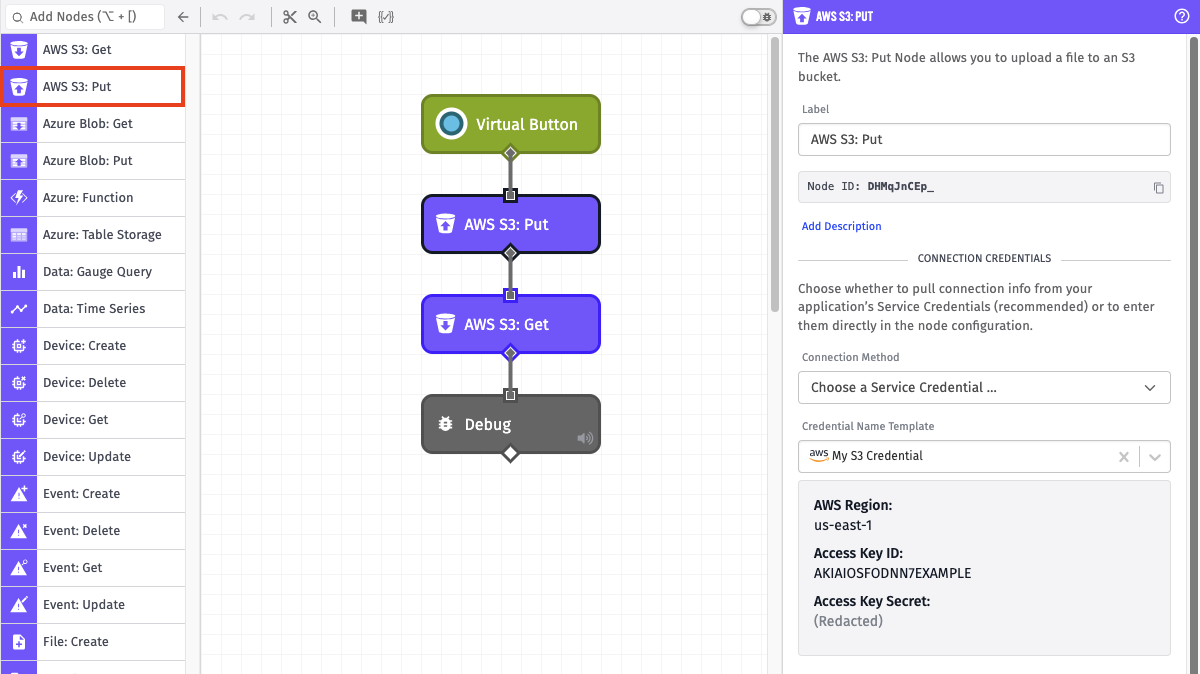

AWS S3: Put Node

Node Properties

There are three main configuration sections for the AWS S3: Put Node …

Credential Configuration

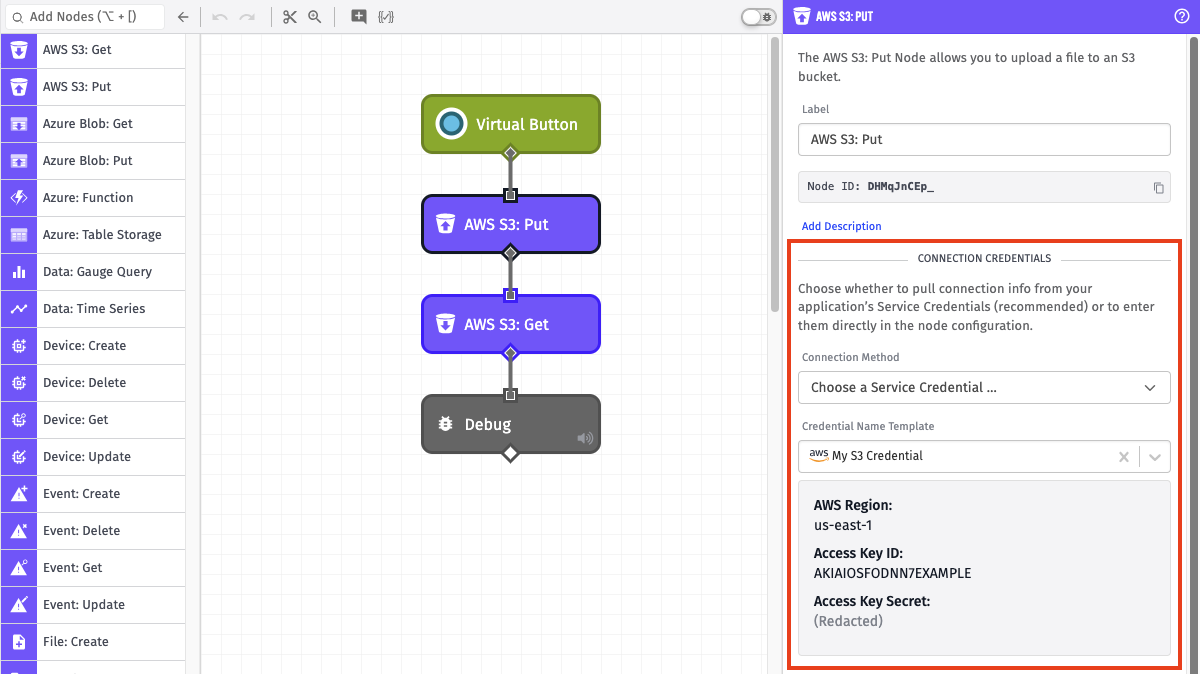

AWS S3: Get Node Credentials

There are three parts to configuring credentials, and all of them are templatable:

We recommend that you create an AWS Key/Secret pair specifically for use in the Workflow Engine - keys that only have access to the proper AWS S3 buckets.
We also recommend that you store these values as workflow globals.

AWS Permissions

In order to perform a put operation, the AWS user must have, at minimum, the following IAM Policy:

  "Version": "YYYY-MM-DD",
  "Statement": [
      "Effect": "Allow",
      "Action": ["s3:PutObject"],
      "Resource": ["arn:aws:s3:::<bucket-name>/*"]

File Configuration

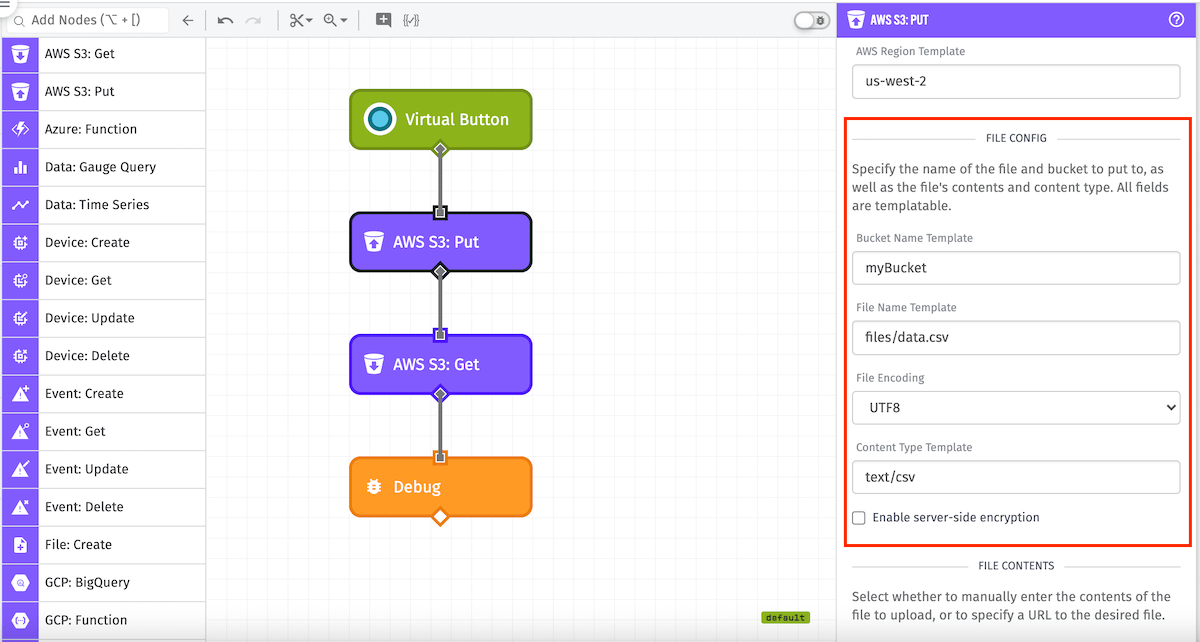

AWS S3: Put Node Config

Next is to configure the fields required by S3. All applicable fields are templatable:

  • Bucket Name: (Required) The S3 bucket to upload to.
  • File Name: (Required) The full file path to upload to.
  • File Encoding: (Required) The encoding of the data being uploading. Defaults to UTF-8.
  • File Type: (Required) MIME type of the file being uploaded.

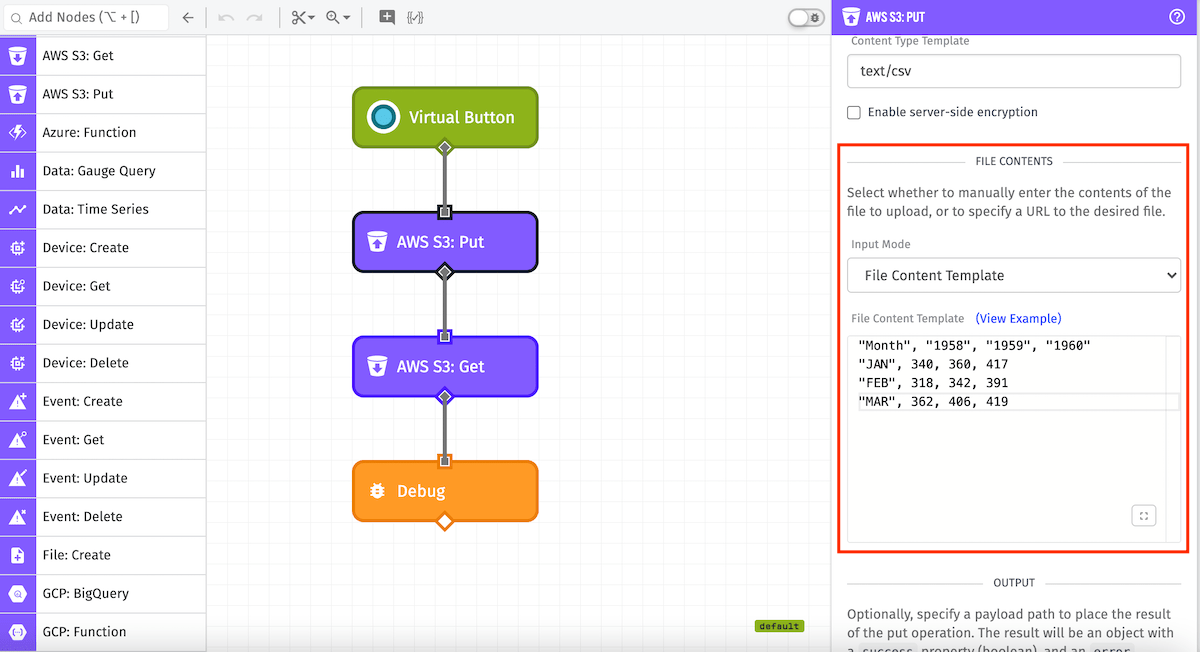

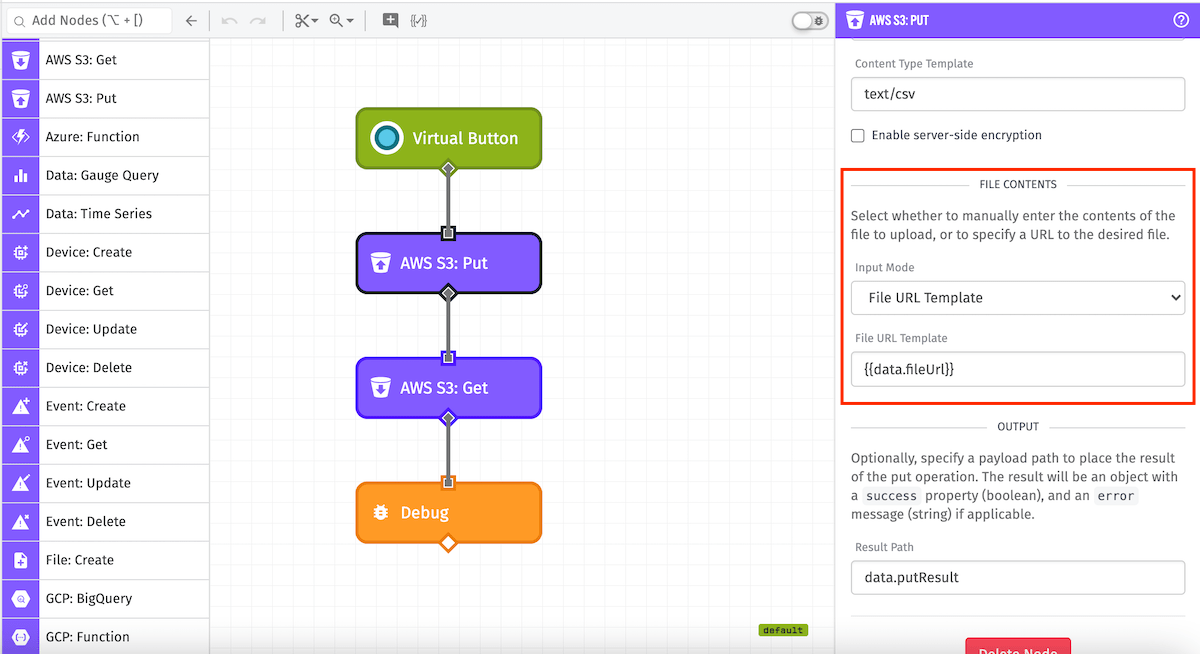

  • File Content: (Required) The content to upload.
  • Server-Side Encryption: Enables AES-256 encryption on the uploaded file. See docs.

Result Path

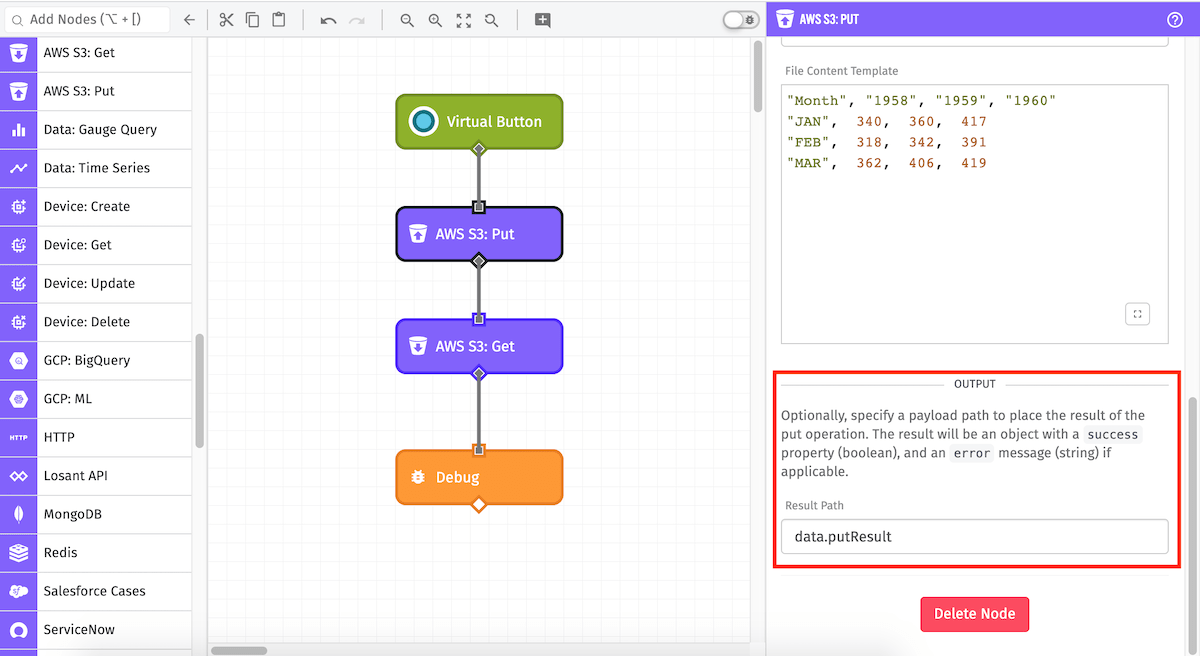

AWS S3: Put Node Output

The success or failure of the operation can optionally be placed at the specified payload path. If the operation fails, the result object will contain an error key in addition to the success state.

Node Example

The following is an example of a successful operation:

  "success": "true"

Node Errors

The following is an example of a failed operation:

  "success": "false",
  "error": "Access Denied"
