ApplicationExperience

Edge: Deploy Node

The Edge: Deploy Node schedules deployment of one or more edge workflow versions to edge compute devices, or schedules their removal.

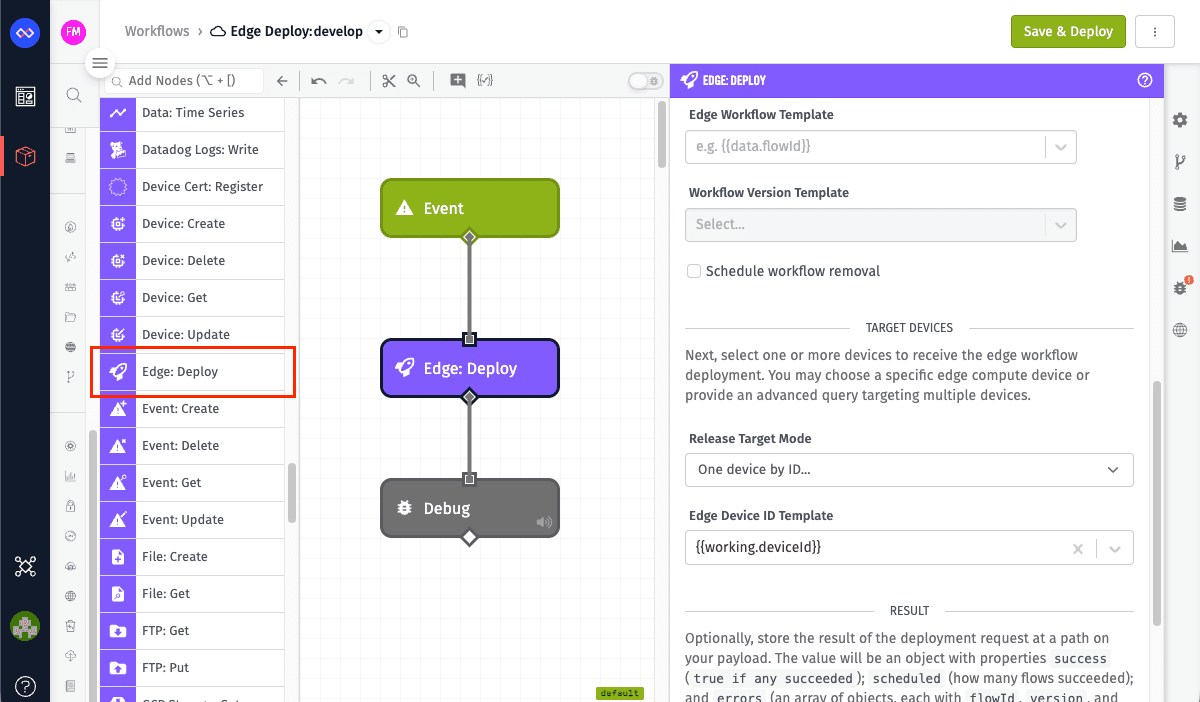

Edge: Deploy Node

Node Properties​

Workflows​

Using the Data Method dropdown, choose one or more workflows and versions to deploy:

  • Individual Fields: Define each workflow deployment in repeatable rows with an Edge Workflow Template (a templatable workflow ID) and a Workflow Version Template (a templatable version name). Check the Schedule workflow removal checkbox to schedule removal instead of deployment.

  • Payload Path: Provide a payload path pointing to an object or array of objects. Each object must have a flowId property (workflow ID) and a version property (version name). Set version to null to schedule removal.

  • JSON Template: Provide a JSON template string that resolves to an object or array of objects with flowId and version properties. Set version to null to schedule removal.

Example JSON structure for Payload Path or JSON Template methods:

[
  { "flowId": "aaaabbbbccccddddeeeeffff", "version": "v1.0.0" },
  { "flowId": "111122223333444455556666", "version": "v1.4.3" },
  { "flowId": "999988887777666655554444", "version": null }
]

The third entry sets version to null, which schedules removal of workflow 999988887777666655554444 instead of deployment.

Validation​

  • 1–25 workflow entries per execution.
  • A unique flowId per execution.
  • No develop version for deployment.
  • A missing or empty version is an error.
  • A version explicitly set to null schedules removal instead of deployment.

Target Devices​

Choose a target mode from the Release Target Mode dropdown:

  • One device by ID...: Provide a templatable device ID in the Edge Device ID Template field (for example, {{data.edgeDeviceId}}).

  • Multiple devices by query...: Provide a templatable advanced query in the Device Query Template field. Matches are always filtered to edge compute devices server-side — devices of other classes matched by the query are ignored, not treated as errors. All matching edge compute devices receive the deployment(s).

Result​

Optionally provide a payload path in the Result Path field to store the result. The result is an object with the following structure:

{
  "success": true,
  "scheduled": 2,
  "errors": []
}
  • success: true if all deployments succeed, false otherwise.
  • scheduled: The number of workflow deployments successfully scheduled.
  • errors: An array of error objects, one per failed deployment, each containing flowId, version, and an error object with type and message.

If one deployment fails, the node continues processing and reports partial success in the result.

Node Example​

Suppose the Edge: Deploy Node uses Individual Fields to deploy workflow aaaabbbbccccddddeeeeffff version v1.2.0 to multiple devices. The Release Target Mode is Multiple devices by query... with the following query:

{
  "tags": {
    "site": { "$eq": "{{data.body.site}}" }
  }
}

This query matches devices tagged with site equal to the templated value {{data.body.site}}. Results are automatically filtered to edge compute devices. The Result Path is data.deployResult.

With the incoming payload:

{
  "data": {
    "body": {
      "site": "chicago"
    }
  }
}

The query matches three edge compute devices tagged with site: chicago. Upon successful execution, the node schedules the workflow for deployment to all three devices. The resulting payload is:

{
  "data": {
    "body": {
      "site": "chicago"
    },
    "deployResult": {
      "success": true,
      "scheduled": 1,
      "errors": []
    }
  }
}

Note: scheduled counts workflow entries processed, not devices targeted. A single workflow entry deployed to many devices via query counts as one scheduled deployment.

Node Errors​

The Edge: Deploy Node handles errors in two ways:

Validation Errors​

The following errors stop execution and write no result:

  • Missing or empty workflow list.
  • More than 25 workflow entries.
  • Duplicate flowId values in the same execution.
  • The develop version specified for deployment.
  • Unresolvable or invalid Device ID or Device Query.

Deployment Errors​

If one or more deployments fail, the node writes a partial result object. For example, if the second device does not exist:

{
  "data": {
    "deployResult": {
      "success": false,
      "scheduled": 1,
      "errors": [
        {
          "flowId": "111122223333444455556666",
          "version": "v1.4.3",
          "error": {
            "type": "NotFound",
            "message": "Device was not found"
          }
        }
      ]
    }
  }
}

The first workflow deployed successfully, but the second failed because the device does not exist.
