Modbus: Write

The Modbus: Write Node allows you to write to multiple registers from your Modbus. This node is only available in edge workflows.

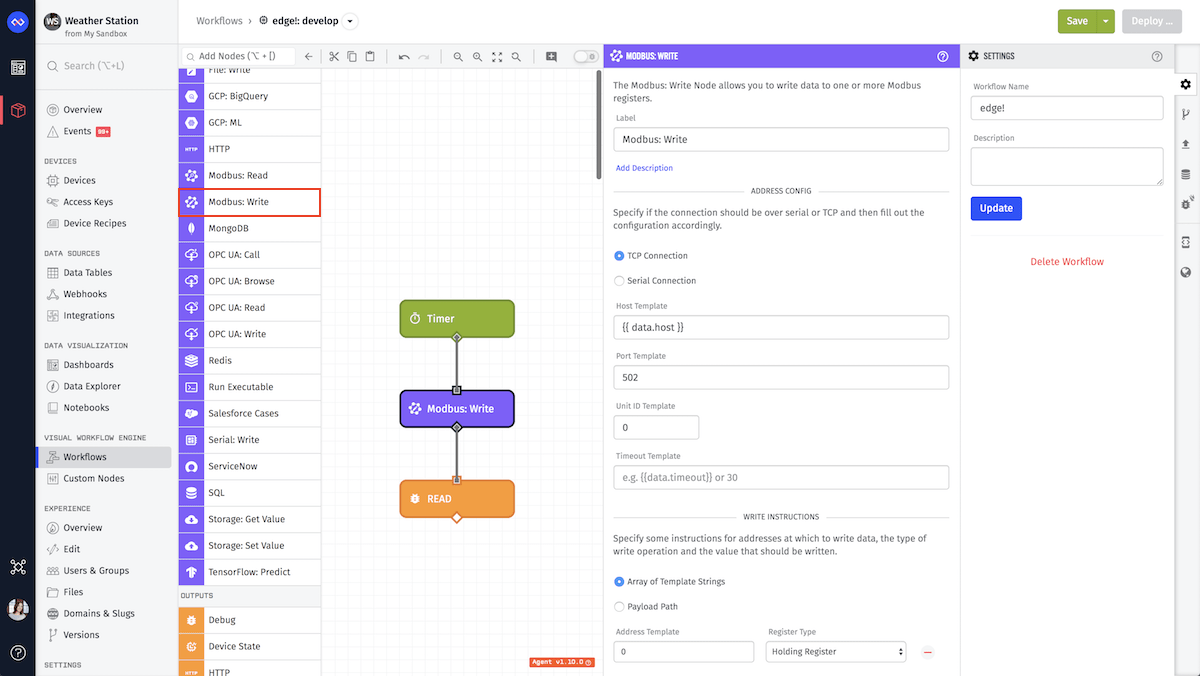

Modbus Write Node

Configuration

There are two main parts of the configuration for this node.

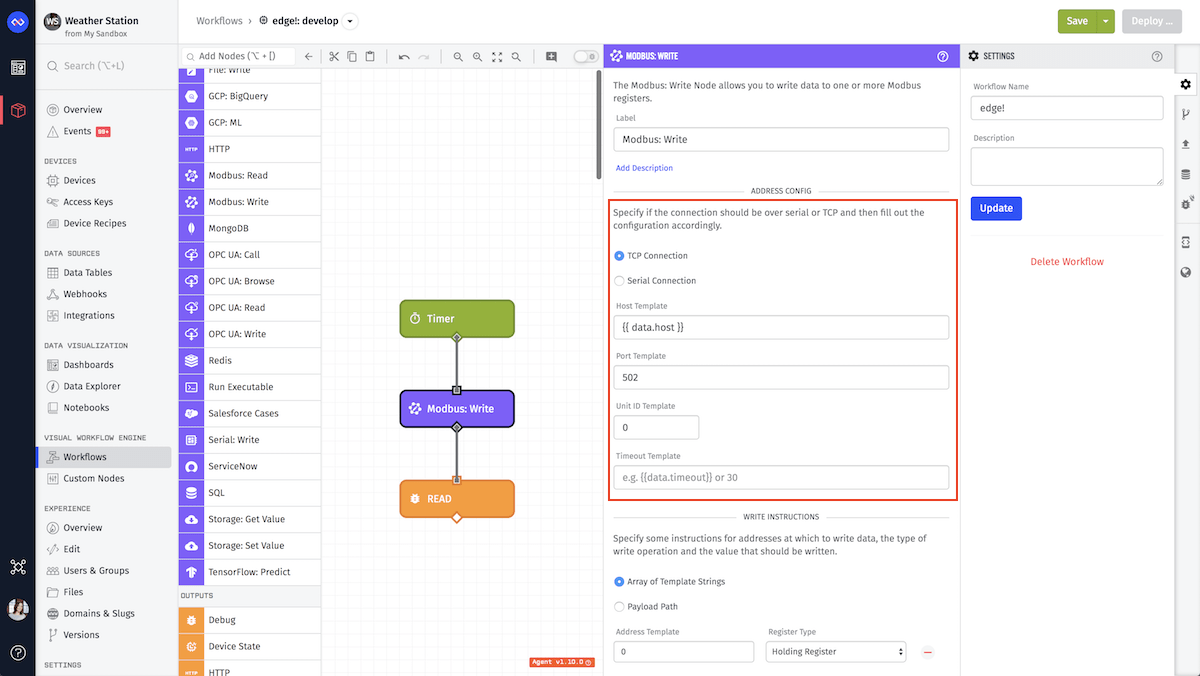

Modbus Write Node Configuration

Address Configuration

Address Configuration contains three fields:

  • Host: (Required) A string template for the IP address at which the register(s) resides.
  • Port: (Required) A string template or integer for the HTTP port.
  • Unit ID: (Required) A string template or integer for the Unit ID at the specified host and port. Defaults to 0.
  • Timeout Template: A string template or integer for the numbers of seconds to wait before a timeout will occur while waiting for read results. Defaults to 30 seconds.

Write Instructions

You may define multiple write instructions for the Modbus: Write Node, and you must define at least one. Each instruction has the following fields, all of which are required:

  • Address: (Required) A string template or integer for the address at which to write. This should resolve to an integer between 0 and 65535 inclusive.
  • Register Type: (Required) Holding Registers (default) or Coils.
  • Value: (Required) A string template or integer for the value to write. If the register type is Holding Registers then this should resolve to an integer between 0 and 65535 inclusive otherwise it should be a single bit.

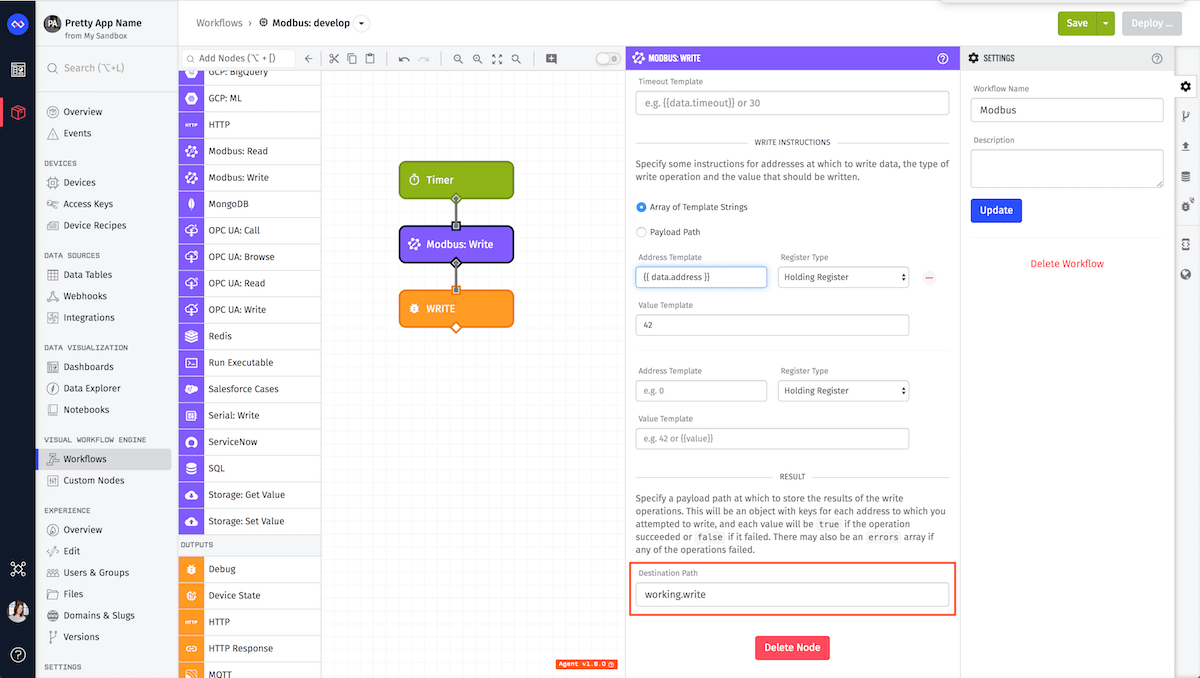

Modbus Write Node Result

Result

The Destination Path (a payload path) is optional, but if you want to confirm that the write was successful, the path should be set. If set, the result of write instruction will be at a key in the format of addr-${Number(address)}, successful writes will have a value of true, and failures will have a value of false.

If any errors occurred, there will be an errors key in the object at your path defining each error that occurred. The only time you will get a single error for multiple writes is if the connection could never be made to the Modbus itself.

For example, say we want to write to two addresses (one at 23, and the other at 80), and we set our Destination Path to destination.output. If all write instructions were successful, the output will look like the following:

"destination": {
  "output": {
    "addr-23": true,
    "addr-80": true
  }
}

If an error occurred the output will look like the following:

"destination": {
  "output": {
    "errors": [
      { "type": "MODBUS_WRITE_ERROR", "message": "Some error occurred at 23" },
      { "type": "MODBUS_WRITE_ERROR", "message": "Some error occurred at 80" },
    ],
    "addr-23": false,
    "addr-80": false
  }
}

If an error occurred for one write instruction, that does not mean all writes were unsuccessful. If one is successful and the other is not the output might look like the following:

"destination": {
  "output": {
    "errors": [
      { "type": "MODBUS_WRITE_ERROR", "message": "Some error occurred at 23" },
    ],
    "addr-23": false,
    "addr-80": true
  }
}
