OPC UA Trigger Node

The OPC UA Trigger Node will trigger a workflow whenever an Edge Compute Device receives a change message on the configured OPC UA monitored node.

OPC UA Trigger

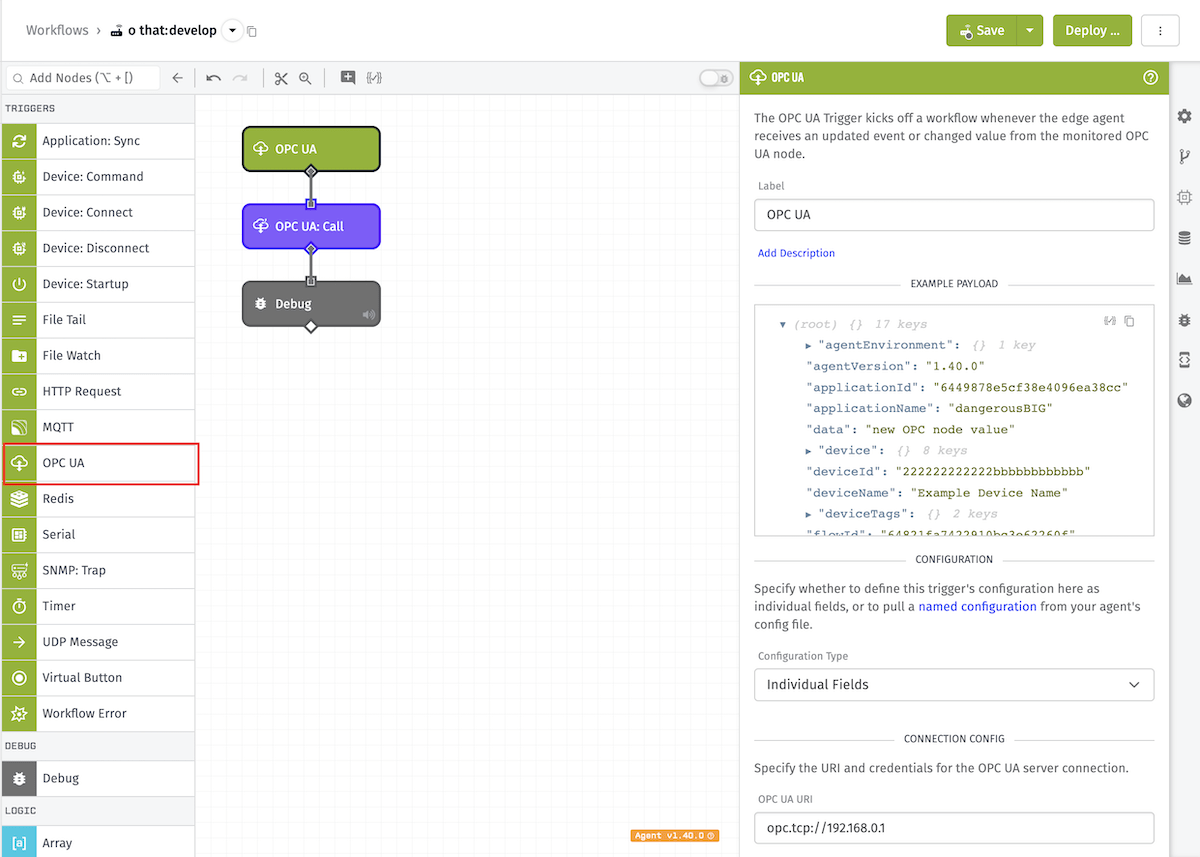

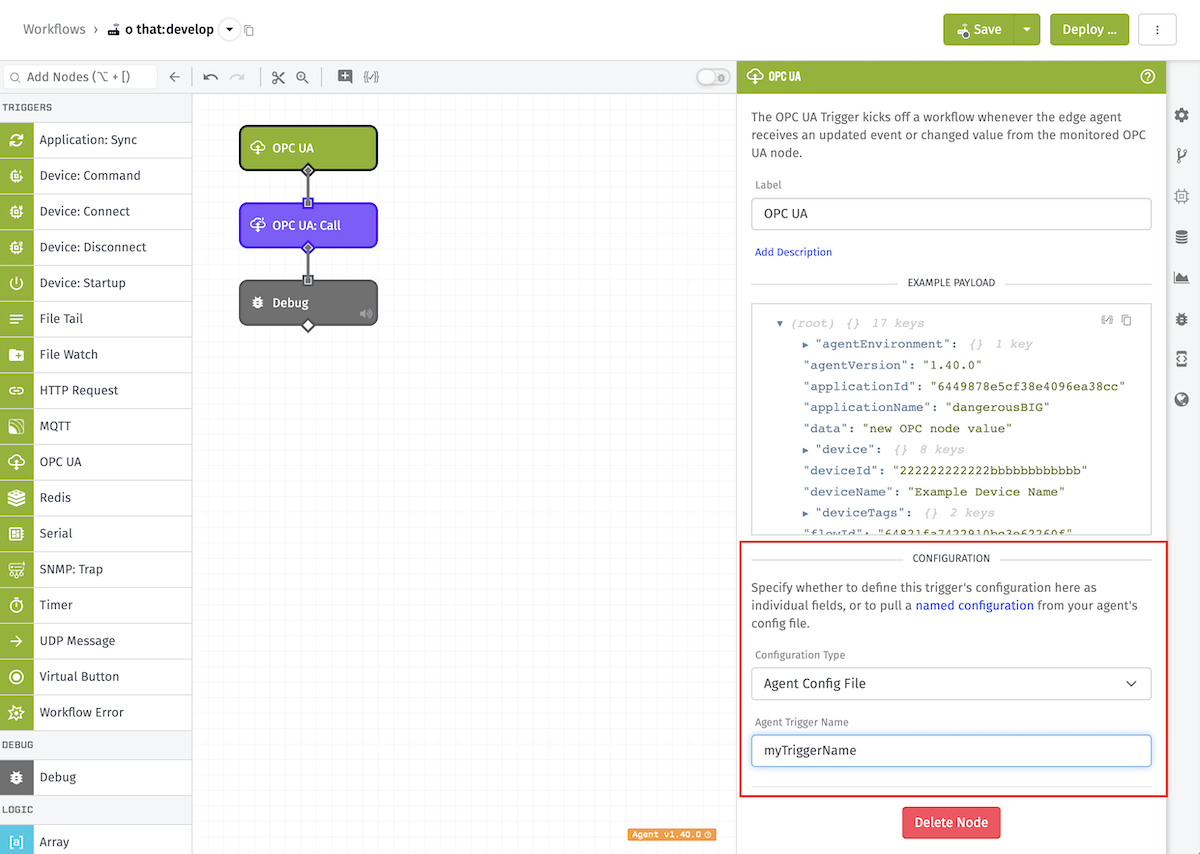

Node Properties

There are four main parts of the properties for this node …

Connection Configuration

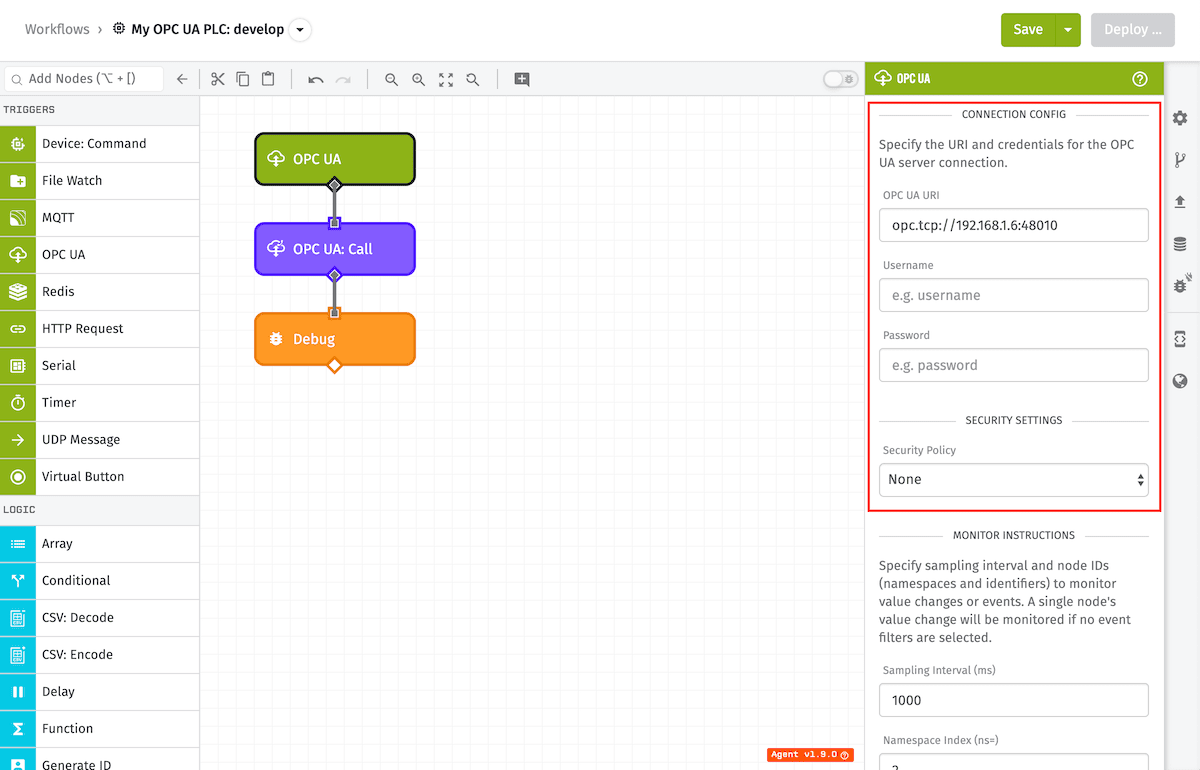

OPC UA Trigger Node Configuration

Connection Configuration contains:

  • OPC UA URI (Required): A string template for the OPC UA server URI.
  • Username (Optional): A string template for login username.
  • Password (Optional): A string template for login password.

Security Settings

You can optionally select a SSL/TLS “Security Policy” for the connection to the OPC UA server through the dropdown selector. Security Policy options include:

  • None
  • Basic-128
  • Basic-128 RSA-15
  • Basic-192
  • Basic-192 RSA-15
  • Basic-256
  • Basic-256 SHA-256

OPC UA Call Node SSL/TLS Security

If a Security Policy is selected, you will have the option to select between “Sign” or “Sign and Encrypt” security modes. You’ll then be required to provide a valid SSL/TLS client certificate and private key.

Monitor Instructions

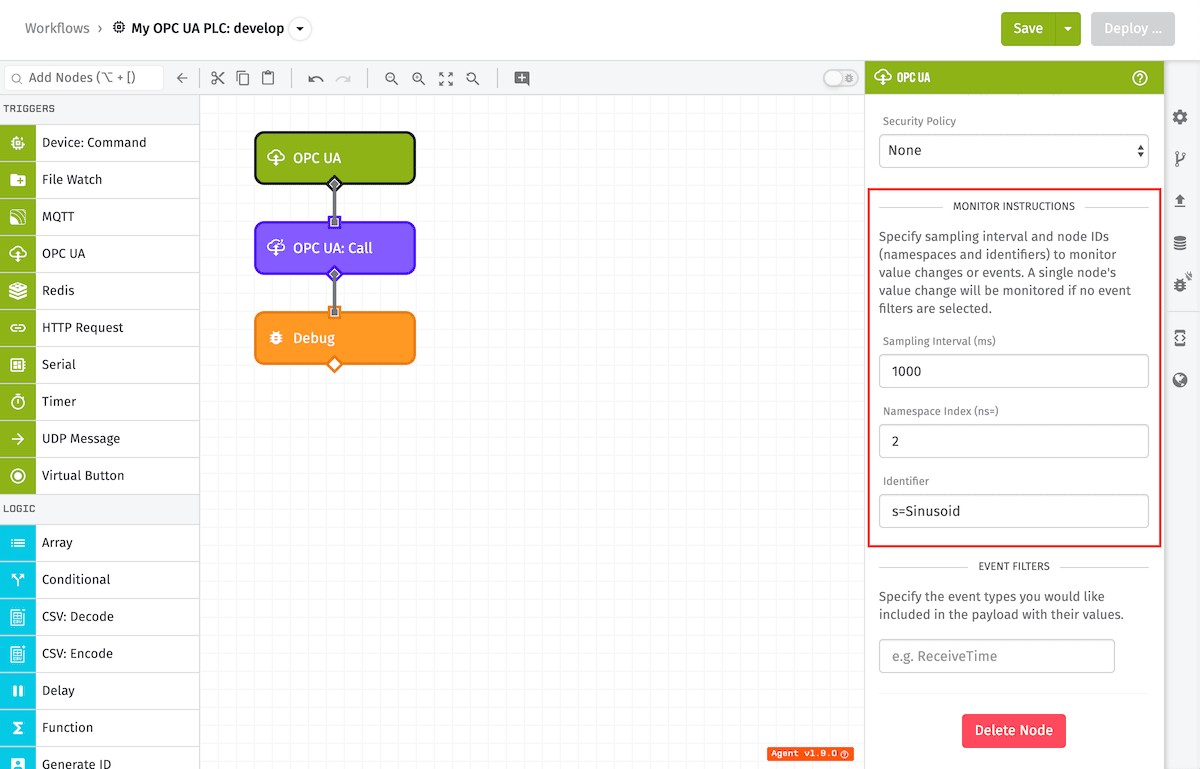

OPC UA Trigger Node Monitor Instructions

You are required to monitor a single OPC UA node for the OPC UA: Trigger Node. Each instruction has the following fields:

  • Sampling Interval (Required): A positive integer of time between samples measured in milliseconds.
  • Namespace Index (ns) (Required): A positive integer.
  • Identifier (Required): A string for the node identifier. The identifier string should begin with one of the following types:

    • i=: for unsigned integer (UINT).
    • s=: for string.
    • g=: for global unique identifier (GUID).
    • b=: for byte string.

Event Filters

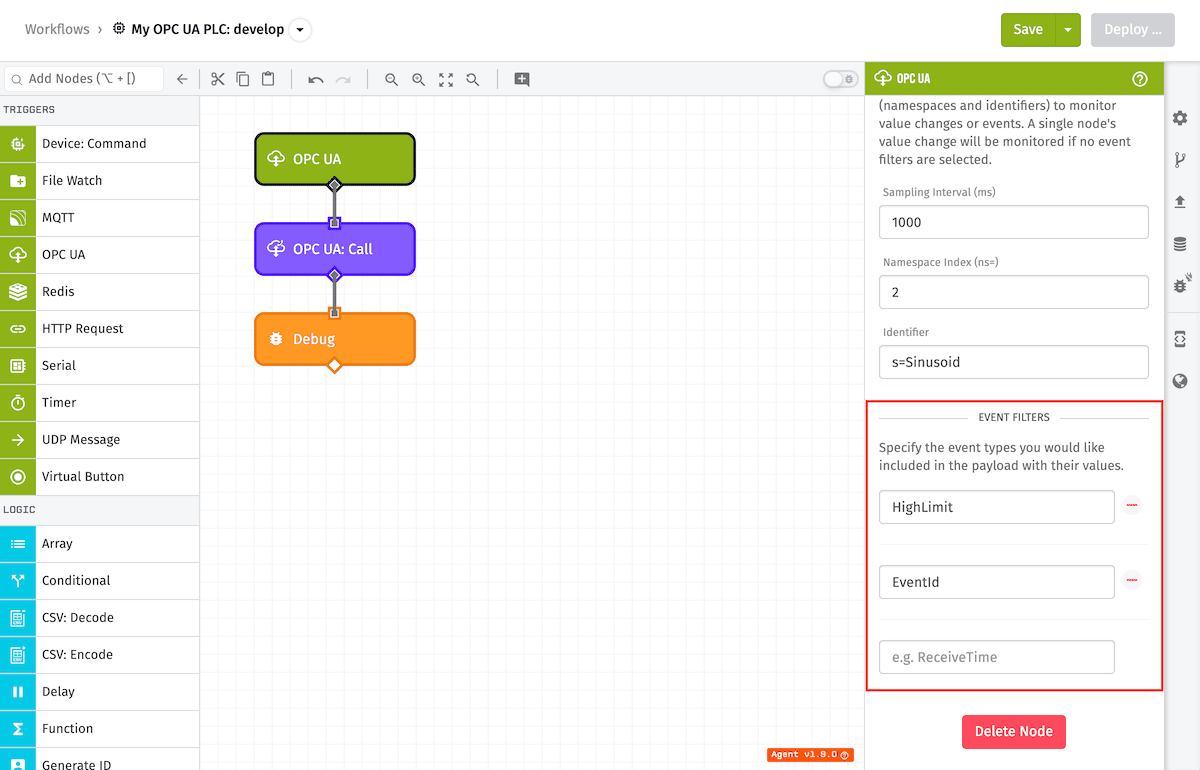

OPC UA Trigger Node Event Filters

Optionally, you can filter multiple OPC UA events and alarms to trigger and display in the payload. You can include custom event/alarm types or select from common OPC UA events. If no event filter is selected, a value change on a node object will be the only event triggered and displayed in the payload.

Note: OPC UA “Extension Objects” returned on an event are not currently supported.

Example Payload

The payload will include the triggering datagram data field. If you are monitoring specific events or alarms, from the Event Filters config, they will be displayed in an object under the data field:

{
  "applicationId": <id of the current application>,
  "applicationName": <name of the current application>,
  "data": {
    "Message": "Condition value is 0.7286692235894777 and state is High",
    "HighLimit": 0.9,
    "EventType": "ns=0;i=9341"
  },
  "deviceId": <id of the edge device>,
  "deviceName": <the edge device name>,
  "deviceTags": {<any tags for the edge device>},
  "flowId": <id of the current workflow>,
  "flowName": <name of the current workflow>,
  "flowVersion": <name of the current workflow version>,
  "globals": <object of workflow globals>,
  "isConnectedToLosant": <if the agent is connected to Losant>,
  "agentEnvironment": <object of environment variables>,
  "time": <time the message arrived>,
  "triggerId": <id of the opcua trigger>,
  "triggerType": "opcua"
}

If no event filter is configured the new value will appear at the data field:

{
  "applicationId": <id of the current application>,
  "applicationName": <name of the current application>,
  "data": "new value",
  "deviceId": <id of the edge device>,
  "deviceName": <the edge device name>,
  "deviceTags": {<any tags for the edge device>},
  "flowId": <id of the current workflow>,
  "flowName": <name of the current workflow>,
  "flowVersion": <name of the current workflow version>,
  "globals": <object of workflow globals>,
  "isConnectedToLosant": <if the agent is connected to Losant>,
  "agentEnvironment": <object of environment variables>,
  "time": <time the message arrived>,
  "triggerId": <id of the opcua trigger>,
  "triggerType": "opcua"
}
